Construction Sites
Where cables get kicked and instruments get bumped. MiniPro turns the unpredictable into the survivable.
Minipro
★ Intelligent Instrument Protective Case
Sicher Protections · Model MiniPro

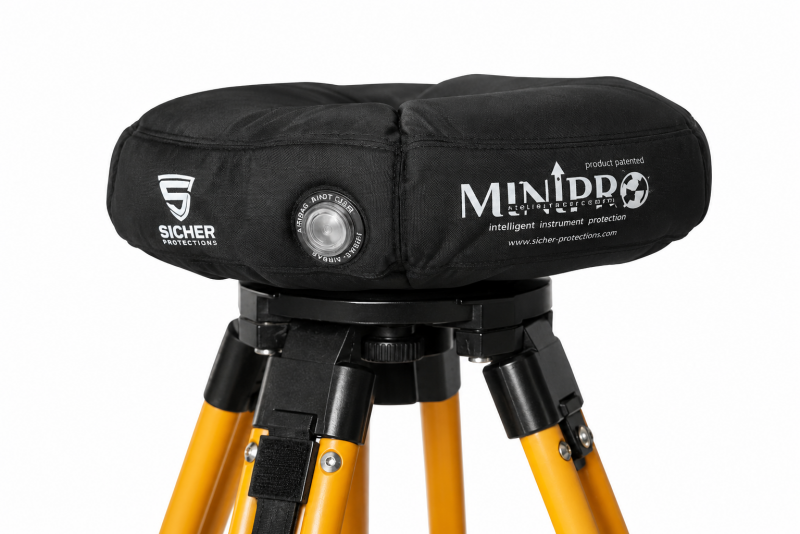

MiniPro Airbag Protection.
The world's first airbag protection system built for total stations — 0.01-second deployment, sensor-driven, fully released before your instrument lands.
A precision instrument worth $30,000+ should not be one bumped tripod away from destruction. MiniPro sits between your total station and the tribrach, watches every movement, and fires an airbag in 0.01 seconds the moment a fall begins — accurately protecting your investment from a single bad day on site.
0.01s Airbag Trigger
Real-time Sensor Monitoring
Dual 18650 Power
Tripod Auto-Detection
One-Button Operation
Built for the Worst Day on Site
One bumped tripod. Zero broken instruments.
MiniPro was engineered around a simple observation: precision instruments fall during use, and when they do, they break. A total station has milliseconds of free-fall before it hits the ground. Human reaction time is far slower than that. MiniPro is not.
Onboard sensors monitor the instrument's status continuously. An intelligent algorithm running at high speed distinguishes a real fall from a bump or vibration. When a fall is confirmed, an airbag fires in 0.01 seconds — fully formed and stable before the instrument touches down on it.
0.01s
Trigger to full deploy
2×
18650 cells, swappable
3.7V
Operating voltage
100%
Deployed before impact
Protection System
Faster than gravity.
Sharper than reflexes.
0.01s
Airbag Trigger Time
From fall detected to airbag fully deployed in ten milliseconds — completely released before the instrument lands.
2000mA
Pulse Drive Current
A 2000mA pulse @ 2–4ms drives the inflation event — enough energy to form a stable cushion before impact occurs.
100%
Pre-Impact Deployment
The airbag is fully released before the instrument lands. Not during. Not after. The cushion is waiting when gravity finishes its work.
REAL-WORLD DEMONSTRATION
Experience V4E Mini RTK Technology In Real Time
A Sicher Group Company
Inventor
Manufacturer
Authorized
UAE · GCC Supply
One group. Two roles. Zero middlemen.
Sicher Protections engineers and manufactures MiniPro from the ground up. Sicher 3D handles authorized distribution, regional warranty, and field support across the Middle East. Same group, same standards, same accountability — start to finish.
The Story Behind MiniPro
We didn't find this product. We built it.
Most distributors source equipment. We engineered ours. A tripod falls in half a second. A $30,000 total station doesn't survive the landing — unless something gets there first.
That's what we built. The first airbag system designed specifically for surveying instruments. Sensor-driven. Algorithm-controlled. Deployed in 0.01 seconds.
Factory warranty
UAE & GCC official supply
Local Dubai service
Key Features
Six engineering decisions
that change how you protect.
Every feature on MiniPro was added to solve a real fieldwork problem — not to fill a marketing brochure.
FEATURE 01
0.01-Second Airbag Trigger — No more broken instruments.
The airbag fires in one one-hundredth of a second. It is fully deployed and stable before the instrument lands — not as it lands. A typical fall from tripod height takes 0.3 seconds; MiniPro is 30× faster than the fall itself. There is no equivalent system on the market for surveying equipment.
30× faster than the fall
Airbag fully deployed before instrument impact
FEATURE 02
Smart Tripod Detection
An onboard sensor confirms the device is correctly mounted on a tripod before arming. No false triggers in transit, no power drain when off-duty.
FEATURE 03
LED + Audio Status Feedback
Color-coded LED ring and three distinct audio tones communicate every system state at a glance — battery, sensor faults, and trigger events.
FEATURE 04
One-Button Activation
Press the switch. The indicator illuminates. The system is armed. Designed for cold mornings, gloved hands, and tight deadlines.
FEATURE 05
Drop-In Installation
Mounts between your total station and the tribrach as a low-profile ring. No re-rigging, no workflow change, no instrument height recalibration required.
FEATURE 06
Dual 18650 Lithium Power.
Two 18650 cells at 3.7V / 3500mAh each — 7000mAh total capacity. Standby current under 100mA, normal operating current 250–300mA, and a 2000mA pulse during deployment. The system stays armed throughout a full workday, and cells are user-swappable in seconds. No proprietary battery, no service contract, no downtime.
7000 mAh capacity
Full-day standby on swappable industry-standard cells
Sensor Intelligence
Real-time monitoring. Microsecond decisions.
MiniPro doesn't just react to motion — it interprets it. A dedicated chip motherboard runs an intelligent algorithm at high speed, fusing sensor data to distinguish a bump from a vibration from a genuine fall. The decision-making happens in microseconds, so the trigger only fires when it must.
01
Continuous Sensor Monitoring
Sensors monitor instrument orientation, motion, and tripod connection in real time — always watching, never sleeping.
02
Intelligent Algorithm
High-speed onboard processing decides what counts as a fall. A bump is not a fall. A vibration is not a drop. MiniPro knows the difference.
03
Precision Trigger
When a fall is confirmed, the airbag fires in 0.01 seconds — fully deployed and stable before the instrument touches the ground.
Status Indicators
Honest signals.
No guesswork.
MiniPro tells you exactly what's happening — through a color-coded LED ring and a distinct audio tone for every system state.
LED · RED
Battery Low
The system has detected that battery capacity is approaching the critical threshold. Swap or recharge the 18650 cells before next deployment.
Audio · Dual-tone beep
LED · YELLOW
Interlock / Sensor Error
The tripod mount detection or one of the internal sensors has failed integrity check. The system will not arm until the fault is cleared.
Audio · Fast continuous beep
LED · RED / YELLOW ALT
Trigger / Gas Event
The system has fired or detected a gas-side fault. The airbag has been deployed or the charge needs servicing before next use.
Audio · Continuous beep
Why Choose Active Protection
MiniPro vs. traditional protection.
If you're still relying on a hard case or insurance to protect your total station, here's what you gain by upgrading to active airbag protection.
| Capability | MiniPro Airbag | Hard Carrying Case | No Protection |
|---|---|---|---|
| Protects during active use on tripod | |||
| Active sensor + algorithm detection | |||
| Airbag deployment before impact | |||
| Trigger speed | 0.01 sec (10 ms) | N/A — passive | None |
| Coverage scenario | In-use falls + transit | Transit only | None |
| Status indicators (LED + audio) | |||
| Setup change required | None — drop-in install | Pack & unpack each use | None |
| Battery / power-user serviceable | Swappable 18650 cells | N/A | N/A |
| Risk to $30K+ instrument | Mitigated in real time | Unprotected during work | Fully exposed |
Technical Specifications
Every detail. Documented.
Complete technical specifications for the MiniPro Intelligent Instrument Protective Case. Pulled directly from the Sicher factory datasheet.
| Performance | |
| Trigger Time | 0.01 sec (10 ms) |
| Deployment Behaviour | Fully released before instrument lands |
| Activation Method | Sensor-driven + intelligent algorithm |
| Decision Speed | Microsecond-level processing |
| Electrical | |
| Battery | 2× 18650 · 3.7V · 3500 mAh |
| Total Capacity | 7000 mAh |
| Operating Voltage | 3.7 V |
| Standby Current | < 100 mA |
| Normal Operating Current | 250 – 300 mA |
| Pulse Current | 2000 mA @ 2 – 4 ms |
| Sensors & Logic | |
| Tripod Detection | Active mount sensor |
| Status Monitoring | Continuous, real-time |
| Algorithm | High-speed onboard processing |
| Auto-Arming | Only when correctly mounted on tripod |
| User Interface | |
| Activation | Single physical button |
| Visual Status | LED ring · Red / Yellow / Alternating |
| Audio Status | Dual-tone / fast / continuous beep |
| Power-On Confirmation | Indicator illuminates on switch press |
| Internal Components | |
| Chip Motherboard | Dedicated logic + algorithm controller |
| Battery Compartment | 2× 18650 cell bay, user-swappable |
| Air Cylinder Module | Pressurised inflation charge |
| Airbag Chamber | Full-circumference cushion deployment |
| Compatibility & Installation | |
| Target Instruments | Total stations · theodolites |
| Mount Position | Between instrument & tribrach |
| Workflow Impact | None — drop-in install |
| Instrument Height | No recalibration required |
| Error States & Diagnostics | |
| Battery Low | Red LED · Dual-tone beep |
| Sensor / Interlock Error | Yellow LED · Fast continuous beep |
| Trigger / Gas Event | Red & Yellow alternating · Continuous beep |
Where MiniPro Earns Its Keep
Wherever the ground
isn't forgiving.
MiniPro is built for the environments that destroy unprotected instruments — and the projects that can't afford the downtime.
Bridge Engineering
Deck setting-out, pier alignment, and cable monitoring. Long days, unforgiving conditions, expensive instruments.
Roads & Highways
Long traverses along roadways and rail corridors. Set, level, work, move — without fear of a single bad step.
Tunnels & Underground
Confined spaces with heavy equipment moving constantly. The kind of environment where a single fall ends the workday.
Industrial & Plant
Tight footprints, oil-slick floors, equipment moving in every direction. The kind of environment that eats instruments.
Mining & Quarry
Bench setting-out, stockpile measurement, and underground voids. MiniPro protects the equipment that protects your data.
Why Sicher 3D
Authorized supply.
Full lifecycle support.
Buying MiniPro is buying a smaller insurance premium on every total station you own. Sicher 3D backs every unit with regional service, training, and the kind of after-sales support that protects that investment.
01
Authorized Sicher Supplier
Genuine factory units developed and designed by Sicher Building Model Makers LLC. No grey imports, no questionable sourcing — every MiniPro comes through the official supply chain.
02
Manufacturer Warranty
Full coverage on the MiniPro mainframe with extended service options. Battery and accessories covered separately. Service contracts available on request.
03
On-Site Training
Your survey crew gets hands-on training with MiniPro installation, status interpretation, and post-deployment service procedures.
04
UAE & GCC Service
Local technical support and service from our Dubai facility. Fast turnaround across the UAE, Saudi Arabia, Oman, and the wider GCC region.
Resources
Documentation & Downloads
Datasheets, brochures, and manuals for the MiniPro Intelligent Instrument Protective Case.
Frequently Asked
Common questions about MiniPro.
How does the MiniPro airbag protect a total station?
+
MiniPro mounts between the total station and the tribrach as a low-profile ring. Onboard sensors continuously monitor the instrument's status — orientation, motion, and tripod connection. The moment a fall is detected, an intelligent algorithm fires the airbag in 0.01 seconds. The cushion is fully released before the instrument lands, accurately protecting the instrument from impact damage.
How fast does the MiniPro airbag deploy?
+
The MiniPro airbag deploys in 0.01 seconds (10 milliseconds). The cushion is fully formed and stable before the instrument touches the ground, not as it lands. A typical fall from tripod height takes around 0.3 seconds — MiniPro is approximately 30× faster than the fall itself.
What total stations is MiniPro compatible with?
+
MiniPro is designed to mount between any standard total station or theodolite and its tribrach. It does not change your workflow, instrument height calibration, or measurement procedure. It works with Hi-Target, Leica, Trimble, Topcon, Sokkia, South, FOIF, and other major brands. Contact Sicher 3D for confirmation on compatibility with your specific instrument model.
How does MiniPro detect a fall versus a normal bump?
+
MiniPro uses an intelligent algorithm running on a dedicated chip motherboard. It processes data from internal sensors in real time and distinguishes between vibration, transit movement, and an actual fall event. A bump is not a fall, and a vibration is not a drop — MiniPro knows the difference, so there are no false triggers during normal site work.
How long does the MiniPro battery last?
+
MiniPro is powered by 2× 18650 lithium cells (3.7V / 3500mAh each, 7000mAh total). Standby current is under 100mA, normal operating current is 250–300mA, and the system pulls a 2000mA pulse during deployment. The system stays armed throughout a full workday on a single charge. Cells are industry-standard and user-swappable in seconds.
How do I know when MiniPro is armed and ready?
+
Press the single physical switch. The status indicator LED illuminates and the device powers on. A built-in tripod detection sensor confirms the unit is correctly mounted before arming. Three distinct status states are communicated through the LED ring and audio feedback: Red LED + dual-tone beep (battery low), Yellow LED + fast continuous beep (sensor/interlock error), and alternating Red/Yellow + continuous beep (trigger or gas event).
What happens after the airbag has been deployed?
+
After a deployment event, the status indicator shows the alternating Red/Yellow trigger state with a continuous beep. The air cylinder module needs to be serviced and the airbag chamber inspected before the unit is returned to active use. Contact Sicher 3D for the post-deployment service procedure and replacement charge.
What is the price of MiniPro in Dubai?
+
MiniPro pricing depends on order quantity and accessory bundle. Contact Sicher 3D at sales@sicher-3d.com or +971 50 108 0764 for an authorized quote tailored to your fleet size. Volume pricing is available for survey companies, government tenders, and large construction projects. Given that a single deployment can save a $30,000+ instrument, the ROI math is typically very straightforward.
Don't replace your total station. Protect it.
Speak with our team about MiniPro pricing, fleet rollouts, and on-site demos. We'll help you spec the right configuration and quantity for your survey operation — whether you're protecting one instrument or fifty.
